The Tilegram Mimic System is manufactured and supplied by
Plumridge and Peters Ltd.
1. Standard Tilegram Mimic Cabinet are constructed from an aluminium extrusion into which is fitted a white steel back plate mounted onto 12.5mm thick external plywood. Standard cabinet dimensions are shown on drawing MDS200/1.
Please note: Non-standard sizes are available
2. Tiles are manufactured from 25mm x 25mm x 1.5mm thick laminated P.V.C and come complete with engraved symbol/text and magnetic rubber to our drawing MDS100/2
MIMIC CABINETS
A1 'A' MIMIC CABINET 1213mm WIDE 44 TILES X 31 TILES £1691.00
PACKING CASE FOR THE 'A' MIMIC £254.40
'B' MIMIC CABINET 1600mm WIDE 60 TILES X 31 TILES £2105.16
PACKIG CASE FOR THE 'B' MIMIC £386.90
'C' MIMIC CABINET 2400mm WIDE 92 TILES X 31 TILES £2763.42
PACKING CASE FOR THE 'C' MIMIC £514.10
'A' TILES
24 Tiles in total
ISOLATOR £3.09
ISOLATOR & EARTH £3.83
ISOLATOR & INTERLOCK £3.17
ISOLATOR & EARTH & INTERLOCK £3.91
CIRCUIT BREAKER £3.49
CIRCUIT BREAKER & EARTH £4.23
CIRCUIT BREAKER & INTERLOCK £3.80
CIRCUIT BREAKER & EARTH & INTERLOCK £4.58
SWITCH £3.49
'B' TILES
60 Tiles in total
BLANK £0.46
Tx - DELTA, STAR - NO EARTH £3.41
ALTERNATOR £2.07
Tx - DELTA, STAR £3.59
Tx - STAR, STAR £3.59
Tx - STAR, INTER STAR £3.59
AUTOMATIC Tx £2.07
RECTIFIER £2.07
EARTH SYMBOL £1.90
'C' TILES
14 Tiles in total
RACKED OUT £3.12 COLOUR OF TILES ARE AS SHOWN
DANGER £2.42 COLOUR OF TILES ARE AS SHOWN
MEN WORKING £3.12 COLOUR OF TILES ARE AS SHOWN
ISOLATED £2.42 COLOUR OF TILES ARE AS SHOWN
EARTHED £2.42 COLOUR OF TILES ARE AS SHOWN
LINKS OUT £3.12 COLOUR OF TILES ARE AS SHOWN
FUSES OUT £3.12 COLOUR OF TILES ARE AS SHOWN
UNSERVICEABLE £2.72 COLOUR OF TILES ARE AS SHOWN
DAMAGED £2.77 COLOUR OF TILES ARE AS SHOWN
'D' TILES
7 Tiles in total
COLOUR INDICATION TO VOLTAGES £4.02
33 kV £4.02 COLOUR INDICATIONS CONFORM TO BS 3939
20 kV £4.89 COLOUR INDICATIONS CONFORM TO BS 3939
11 kV £4.01 COLOUR INDICATIONS CONFORM TO BS 3939
6.6 kV £4.01 COLOUR INDICATIONS CONFORM TO BS 3939
3.3 kV £4.89 COLOUR INDICATIONS CONFORM TO BS 3939
230V - 600V & EARTH £4.01 COLOUR INDICATIONS CONFORM TO BS 3939
'SPECIALIST' TILES

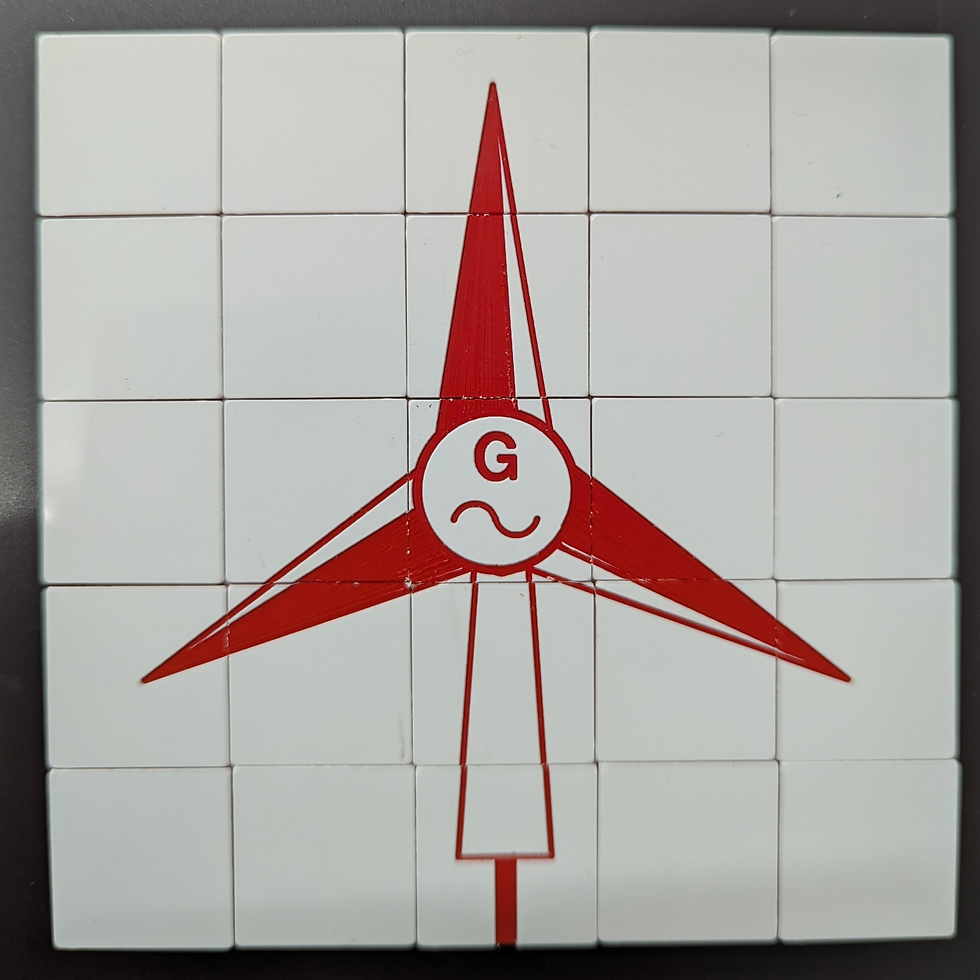

Specialist tiles are available on request to suit your personal requirements - These are some explains to specials Mimic tiles.
